Proxies Pool

1. Introduction​

Le proxies pool est l'ensemble des machines qui exteriorise les services. Elle comporte 2 machines ou plusieurs et a pour but de rediriger le traffic vers l'interieur de la stack. Elle apporte une sécurité supplimentaire à l'infrastructure.

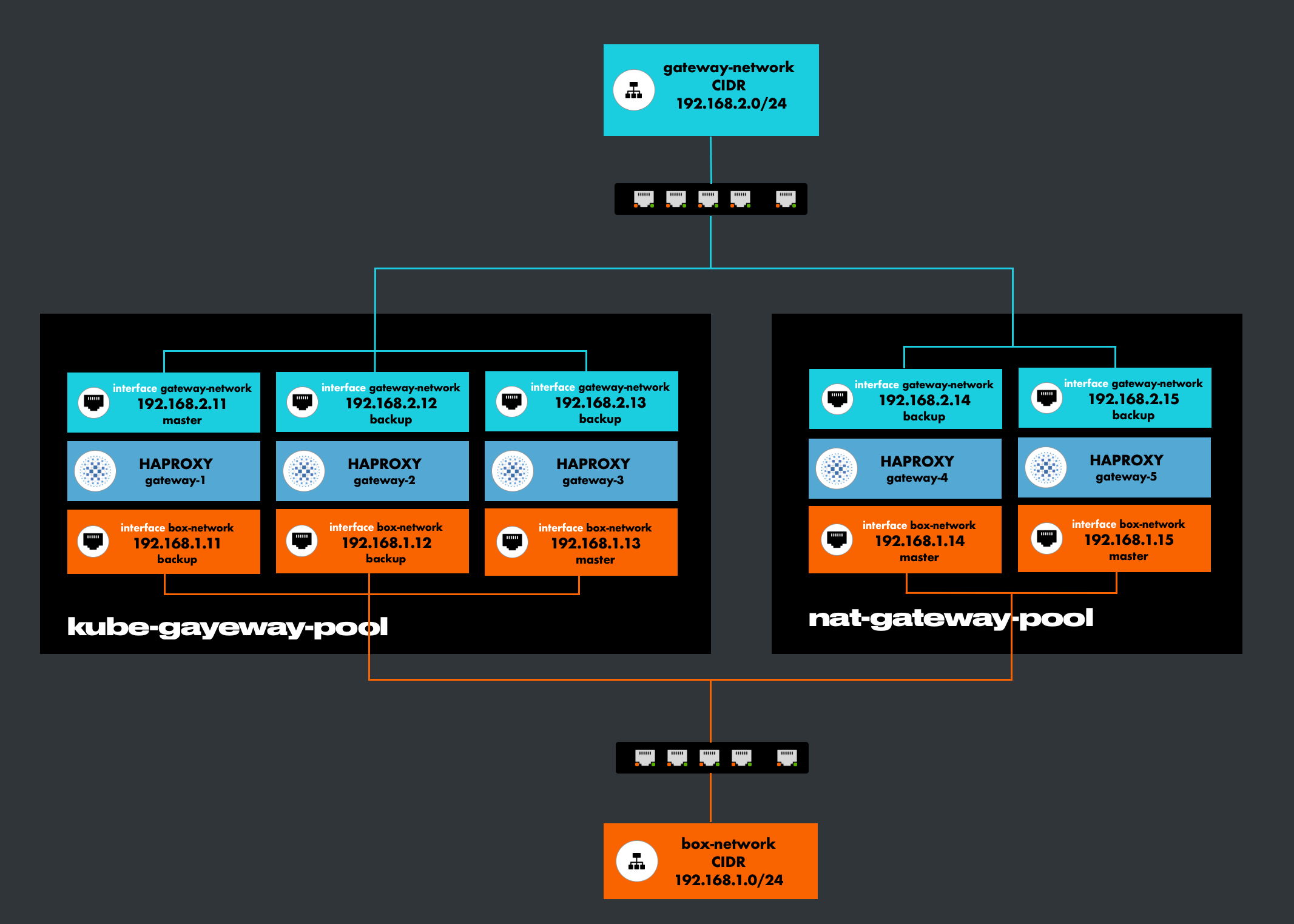

2. Architecture​

infra

The Gateway Pool is divided into two groups:

3. kube-gateway-pool​

3.1. Roles​

This group is a component of the Kubernetes cluster, allowing it to expose its services. Indeed, the exposure of cluster services to the web servers passes exclusively through this group of machines.

infra

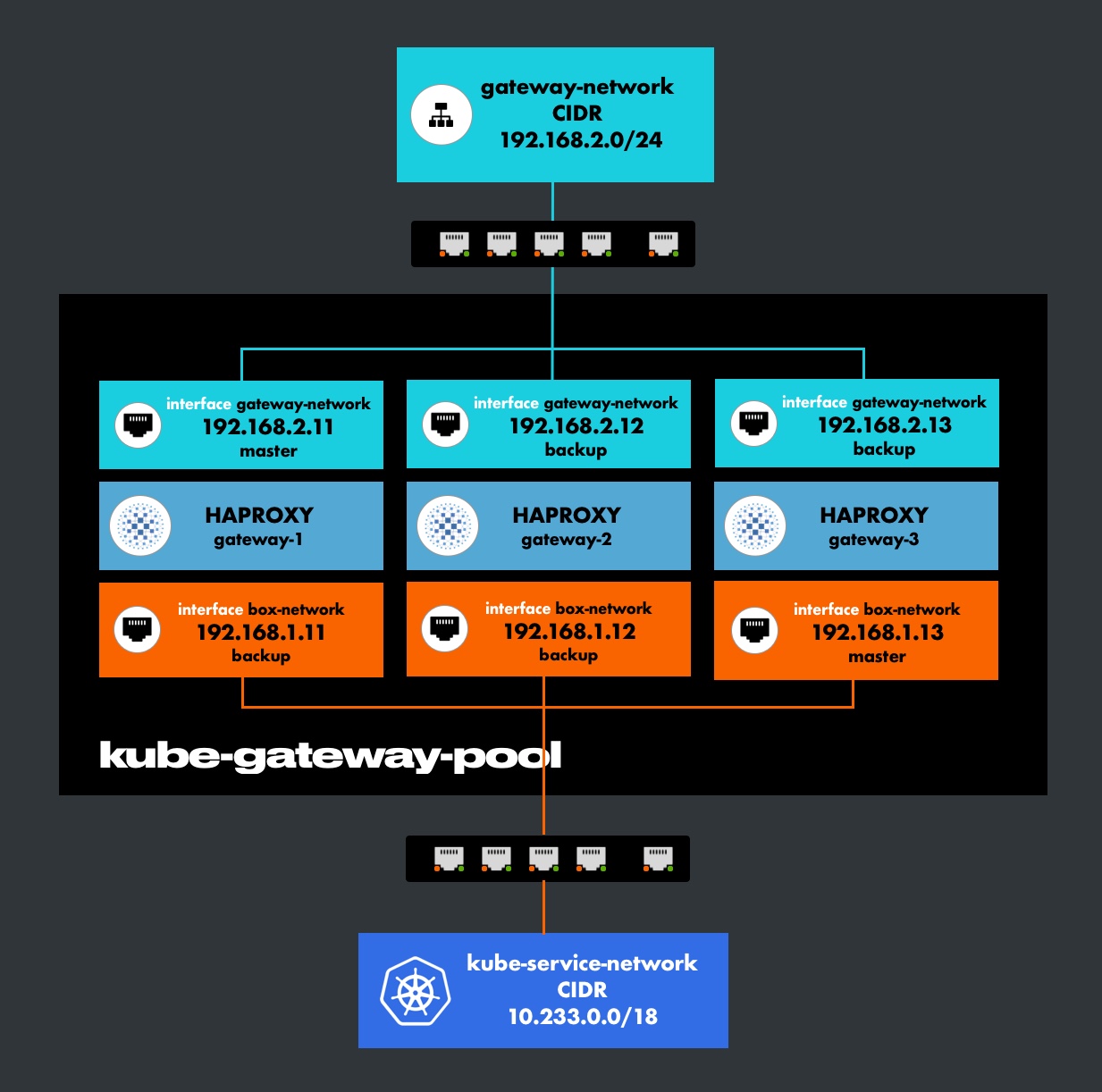

3.2. Networking​

infra

  • Network Interfaces:
    • gateway-network
    • box-network

3.3. Volumes​

infra

3.4. Installation​

To form the group, it must be declared in the main inventory.

    kube_gateway_pool:
      hosts:
        gateway-1:
        gateway-2:
        gateway-3:

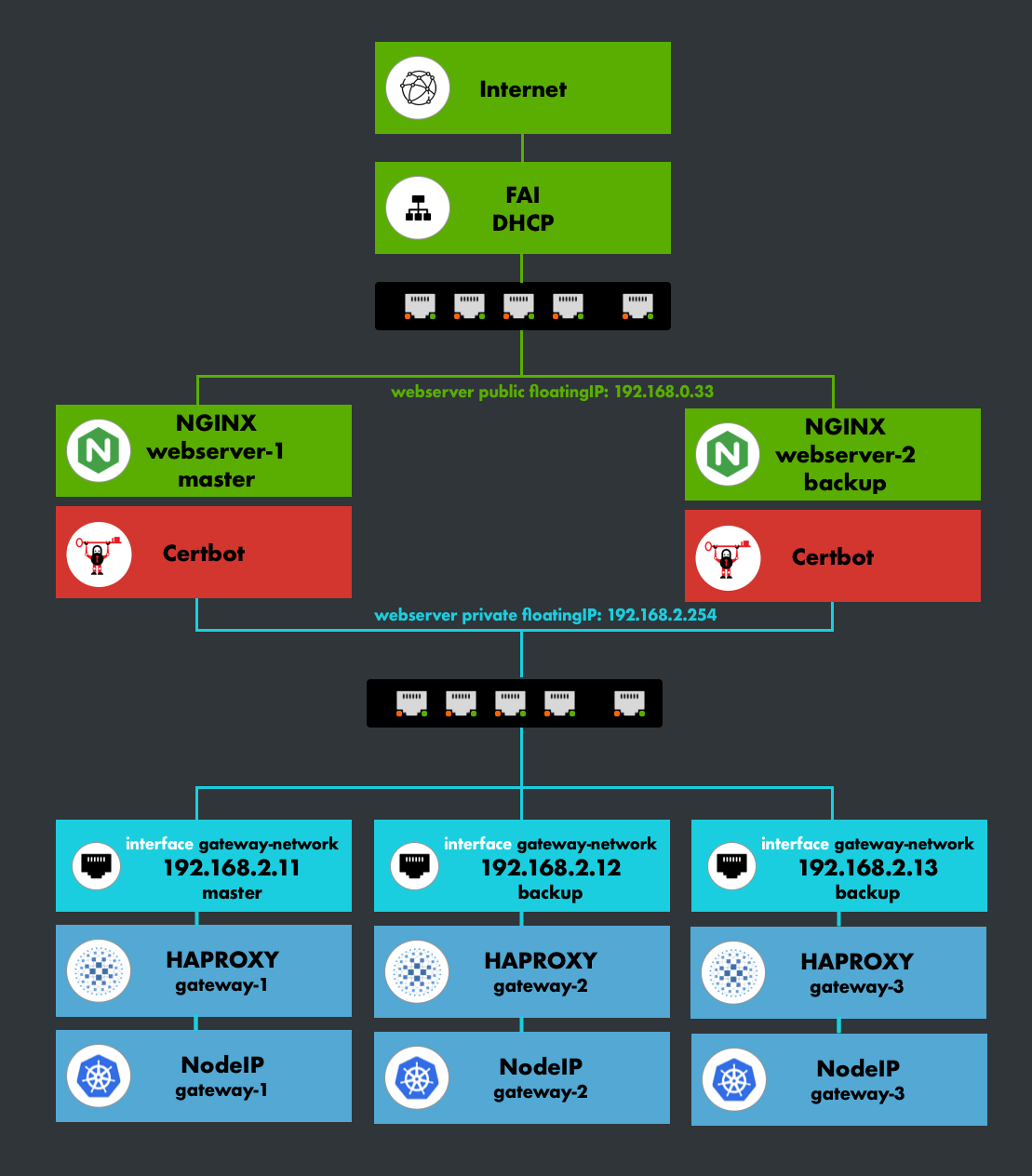

3.5. Routing​

Kubernetes services can only pass through the gateways if they are declared in:

infra

Declaration:

  • Main inventory
    app:
      arogcd:
        port: XXXXX
      pgadmin4:
        port: XXXXX
      dash:
        port: XXXXX
      keycloak:
        port: XXXXX
      kibana:
        port: XXXXX
      v-admin:
        port: XXXXX

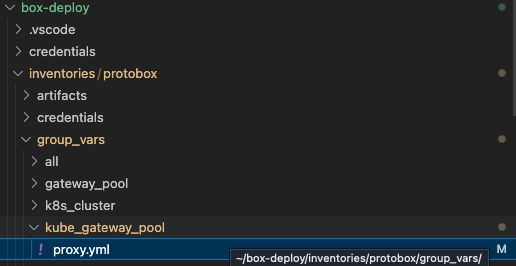

  • Declaration in group vars (Magic variables)
proxies:
  target:
    group: kube_gateway_pool
  routes:
    pgadmin4:
      mode: http
      address: "*"
      port: "{{ app.pgadmin4.port }}"
      destination:
        group:
          name: kube_gateway_pool
          port: "{{ app.pgadmin4.port }}"
        balance: roundrobin
        options:
          - httplog

    argocd:
      mode: http
      address: "*"
      port: "{{ app.arogcd.port }}"
      destination:
        group:
          name: kube_gateway_pool
          port: "{{ app.arogcd.port }}"
        balance: roundrobin
        options:
          - httplog

    dash:
      mode: http
      address: "*"
      port: "{{ app.dash.port }}"
      destination:
        group:
          name: kube_gateway_pool
          port: "{{ app.dash.port }}"
        balance: roundrobin
        options:
          - httplog

    keycloak:
      mode: http
      address: "*"
      port: "{{ app.keycloak.port }}"
      destination:
        group:
          name: kube_gateway_pool
          port: "{{ app.keycloak.port }}"
        balance: roundrobin
        options:
          - httplog

    kibana:
      mode: http
      address: "*"
      port: "{{ app.kibana.port }}"
      destination:
        group:
          name: kube_gateway_pool
          port: "{{ app.kibana.port }}"
        balance: roundrobin
        options:
          - httplog

    v-admin:
      mode: http
      address: "*"
      port: "{{ app.v-admin.port }}"
      destination:
        group:
          name: kube_gateway_pool
          port: "{{ app.v-admin.port }}"
        balance: roundrobin
        options:
          - httplog

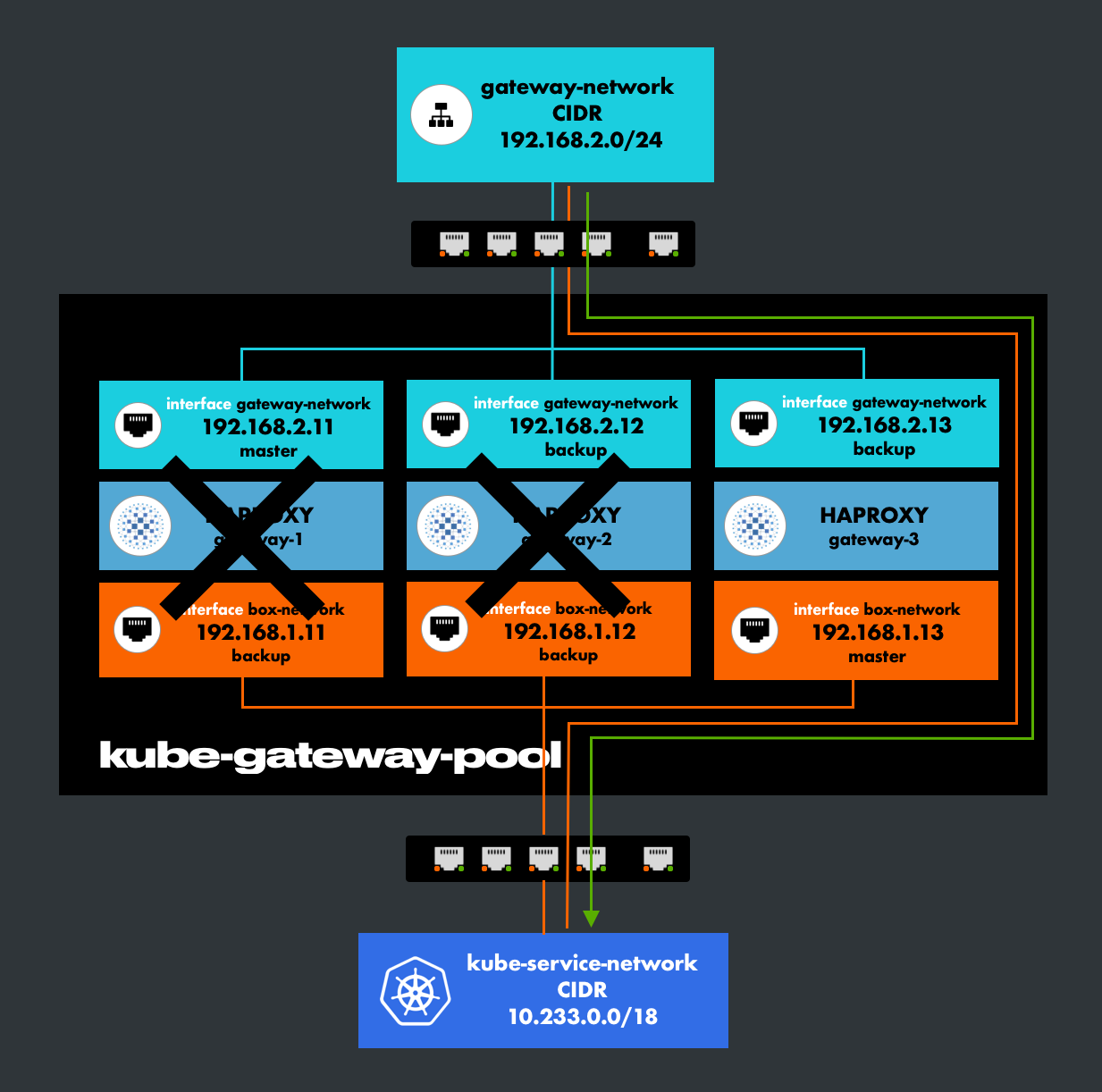

3.6. High Availability​

High availability is ensured through replication. There are three machines with more or less the same configuration.

infra

3.7. Security​

  • iptables: managed by Kubernetes

3.8. Applications​

  • HAProxy for traffic routing
  • GlusterFS for clustering volumes
  • Kubernetes services for exposing deployments
  • Containerd as the container runtime

4. nat-gateway-pool​

4.1. Roles​

This group primarily serves:

  • To route requests to the internet (Iptables, Netplan)
  • To serve internal applications of the box, specifically those used for the box's operation
  • To monitor the infrastructure (Prometheus, Grafana) and services (Consul). Indeed, this is the only group with access to various networks, giving it the legitimacy to monitor all logical units of the infrastructure.

infra

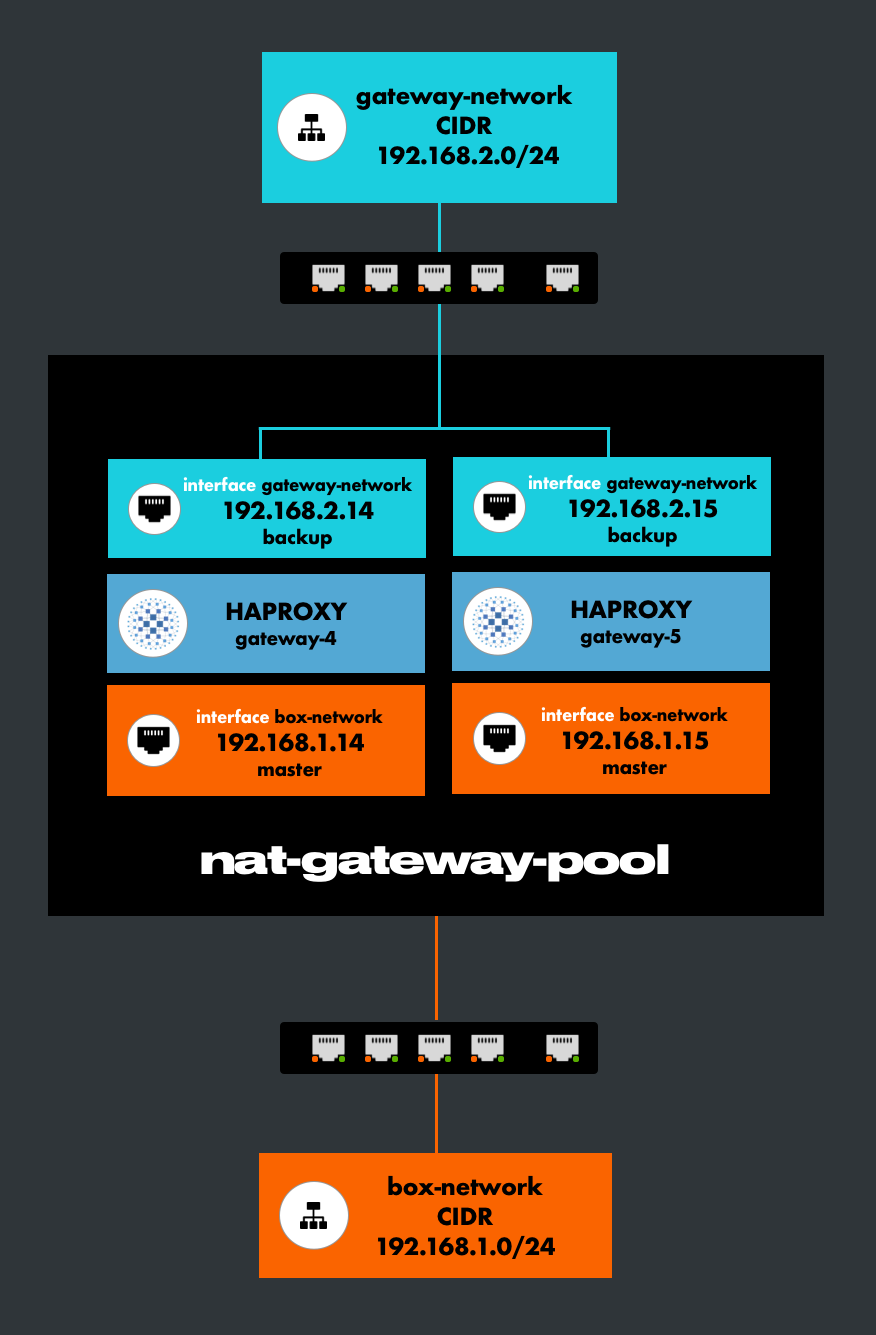

4.2. Networking​

infra

  • Network Interfaces:
    • gateway-network
    • box-network

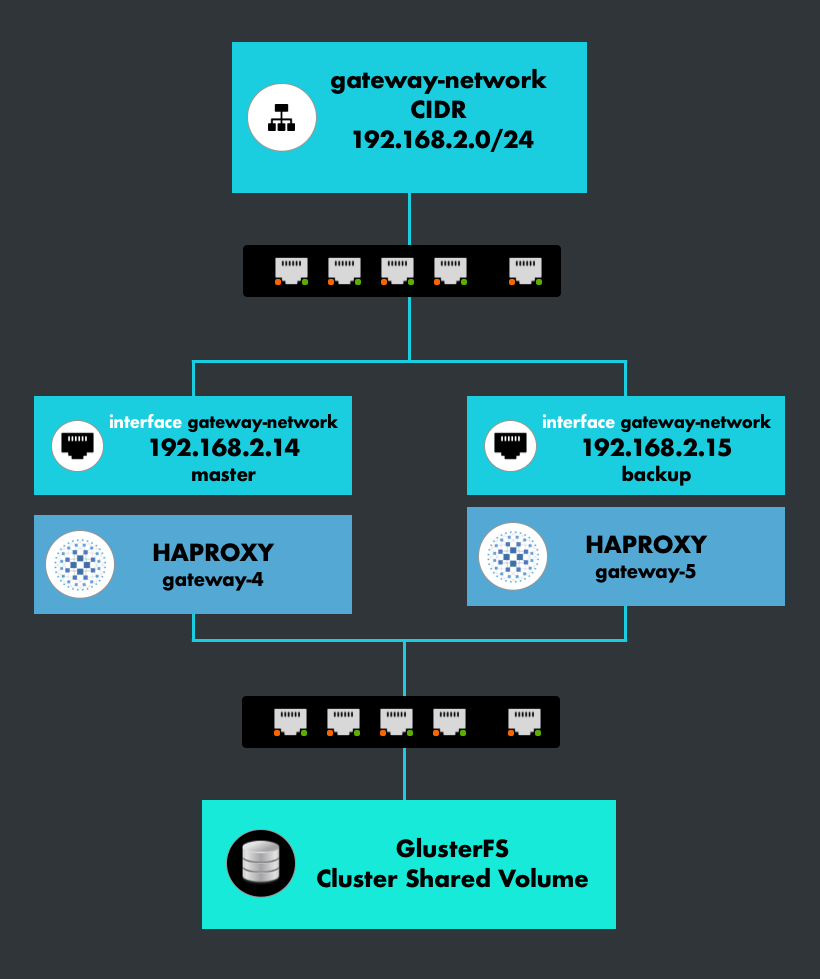

4.3. Volumes​

infra

4.4. Installation​

    nat_gateway_pool:
      vars:
        output_interface: gateway-network
        input_interface: box-network
        vips:
          box-network:
            virtual_router_id: 5
            vip: 192.168.1.254
      hosts:
        gateway-4:
          box-network:
            priority: 200
            state: MASTER
        gateway-5:
          box-network:
            priority: 100
            state: BACKUP

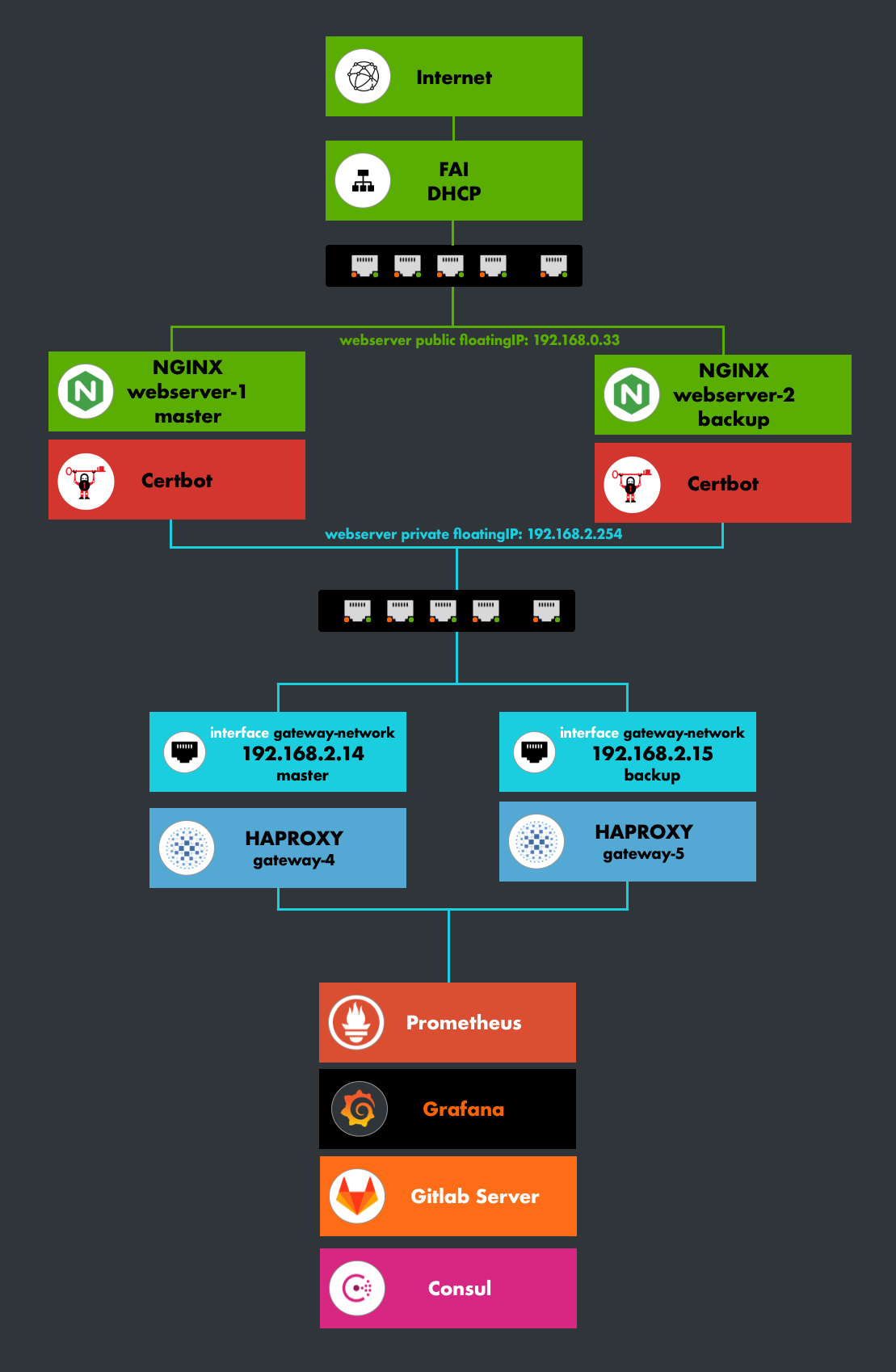

4.5. Routing​

Each machine in the nat-gateway-pool primarily routes traffic to the functional services of the box, i.e., applications used to manage or monitor the cluster's proper functioning. Examples include Grafana, Prometheus, Consul, Gitlab.

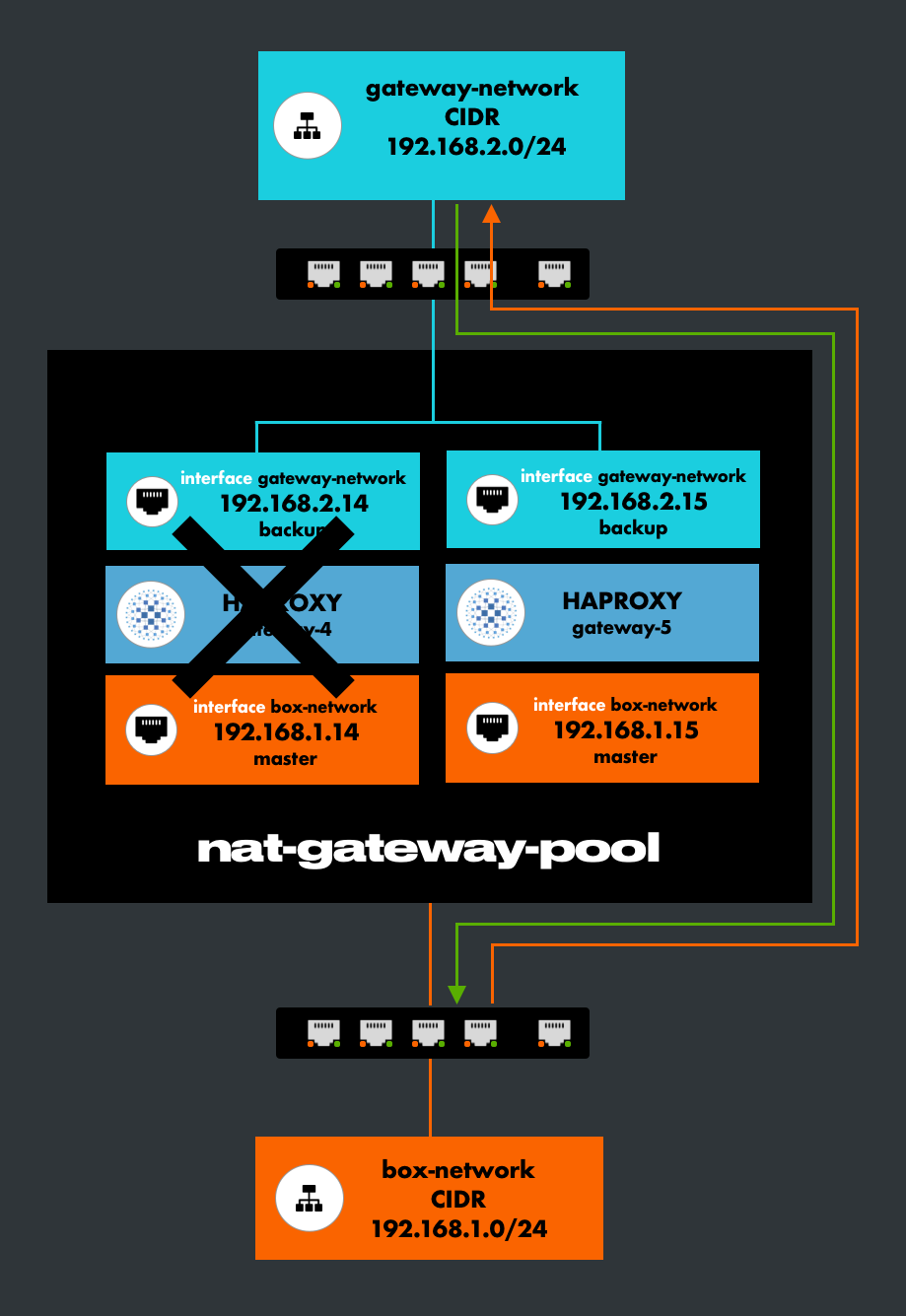

4.6. High Availability​

infra

4.7. Security​

  • iptables (to be completed)

4.8. Applications​

  • Grafana
  • Prometheus
  • Consul
  • Gitlab
